1D-Cu₄I₈(Hdabco)₄

A one-dimensional copper iodide coordination polymer with protonated DABCO ligands, explored for its unique electronic structure and thermal stability.

← All Structures

Crystal Structure

structure.vasp
Loading crystal structure…
Drag rotate  |  Scroll zoom  |  Right-drag pan
Elements: I Cu N C H    ▬ a-axis   ▬ b-axis   ▬ c-axis
PropertyValue
FormulaCu4I8(Hdabco)4
Dimensionality1D chain
Crystal systemOrthorhombic
Lattice parametersa = 13.19 Å, b = 9.74 Å, c = 14.90 Å
Cell volume1917 Å3
Formula units (Z)2
Atoms per cell192  (16 I, 8 Cu, 16 N, 104 H, 48 C)

Electronic Structure

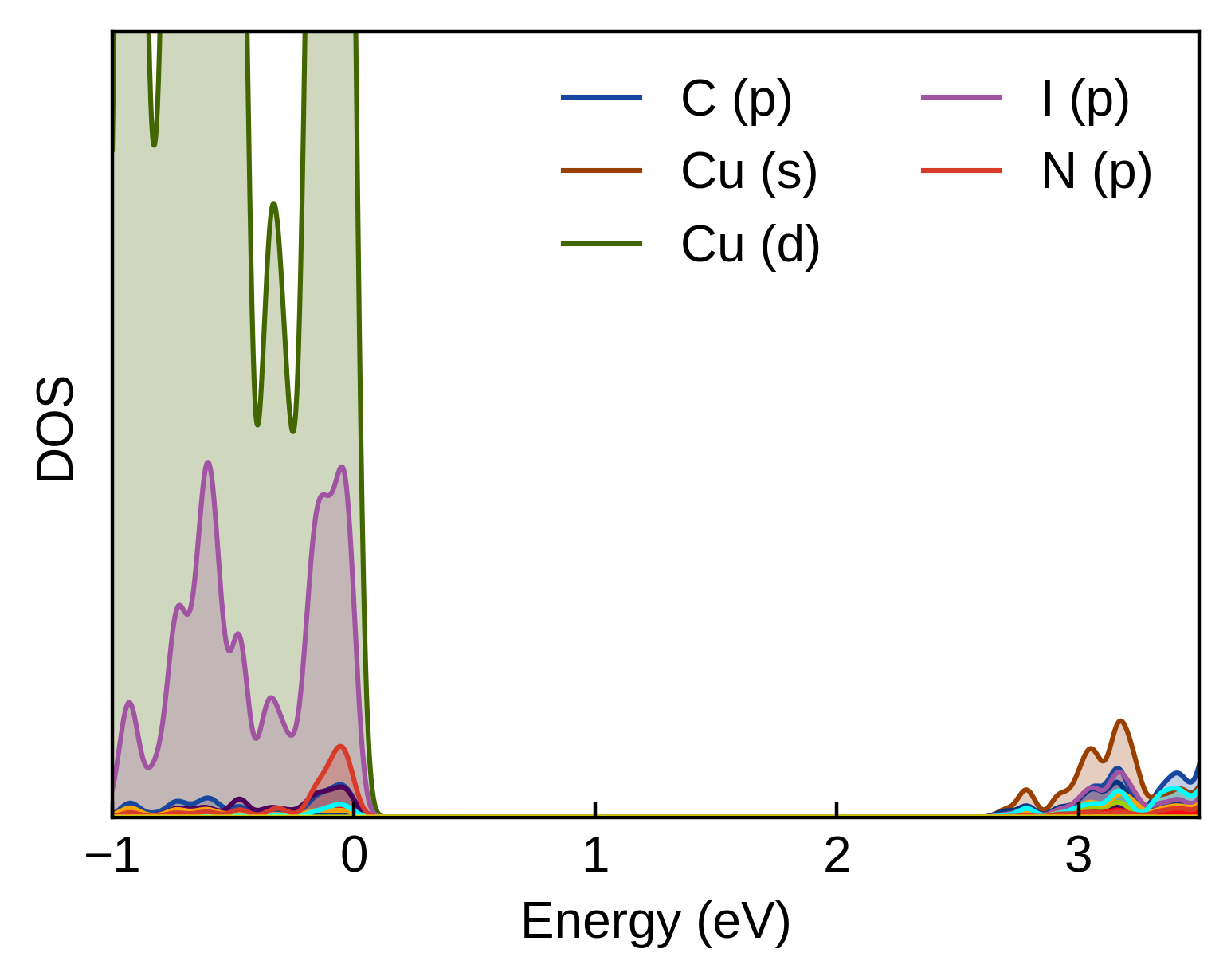

Density of States
Density of States (DOS)

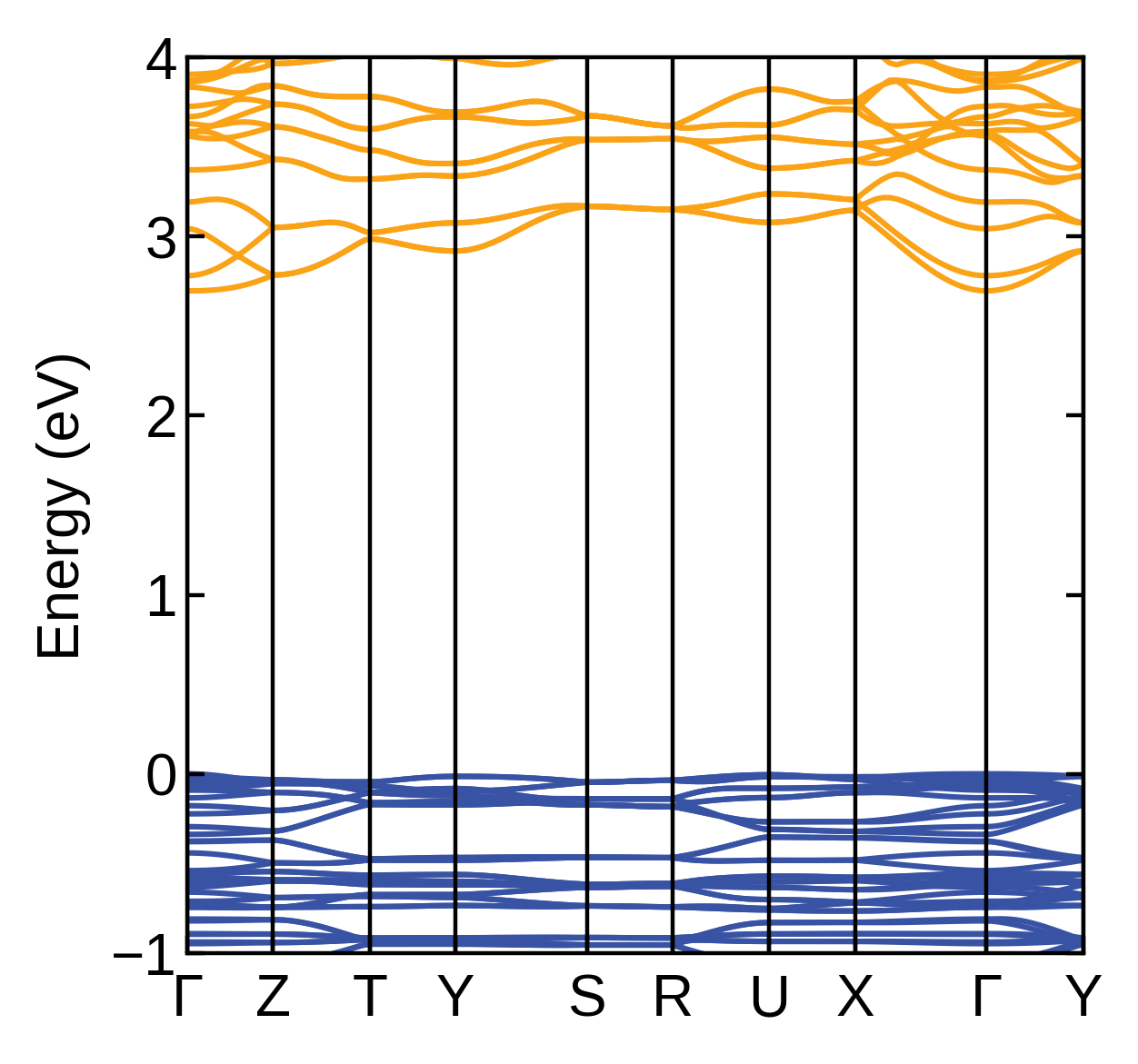

Band Structure
Electronic Band Structure

AIMD Trajectory

XDATCAR
Fetching trajectory…
Step: — Speed:
Elements: I Cu N C H
